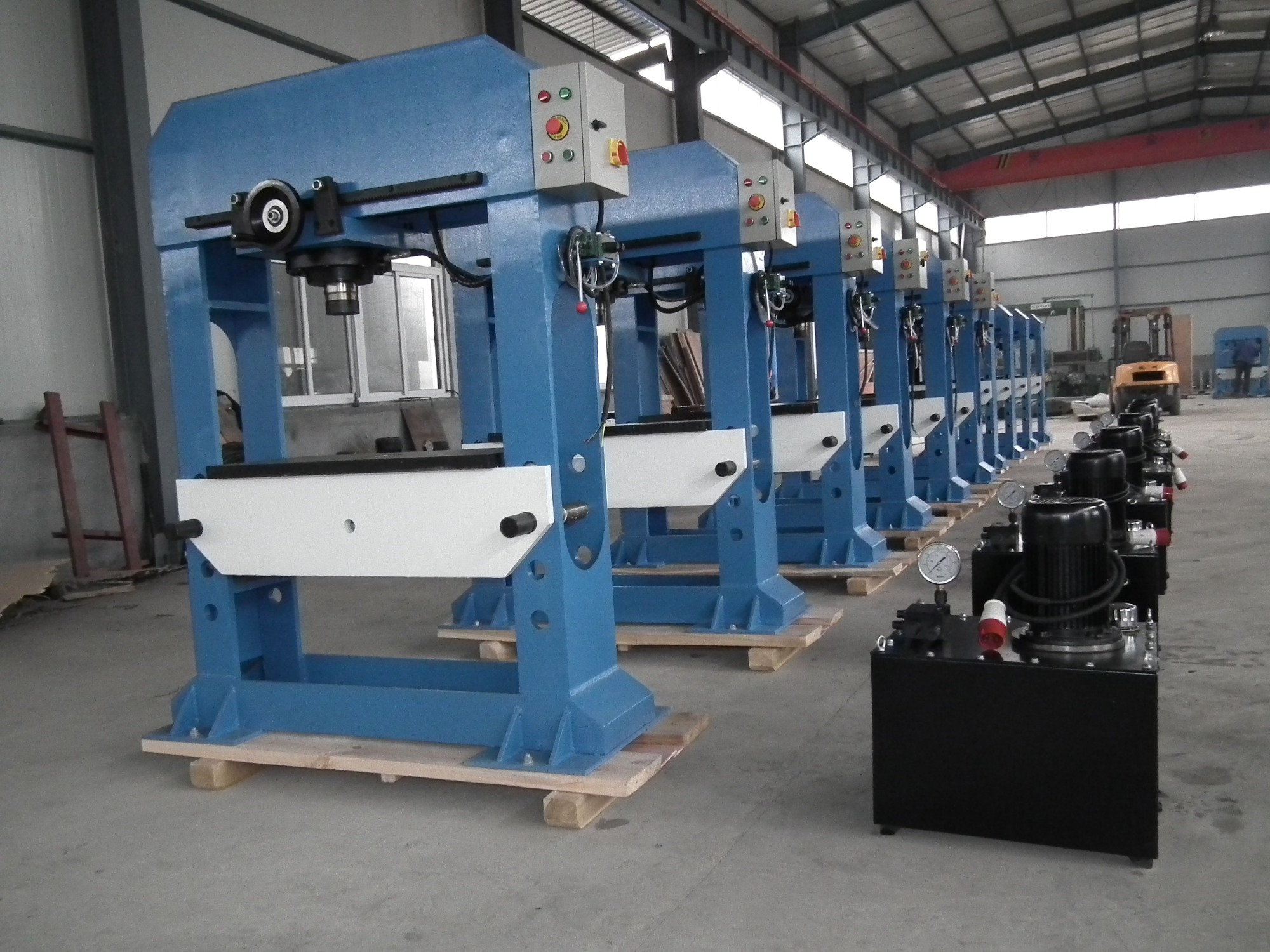

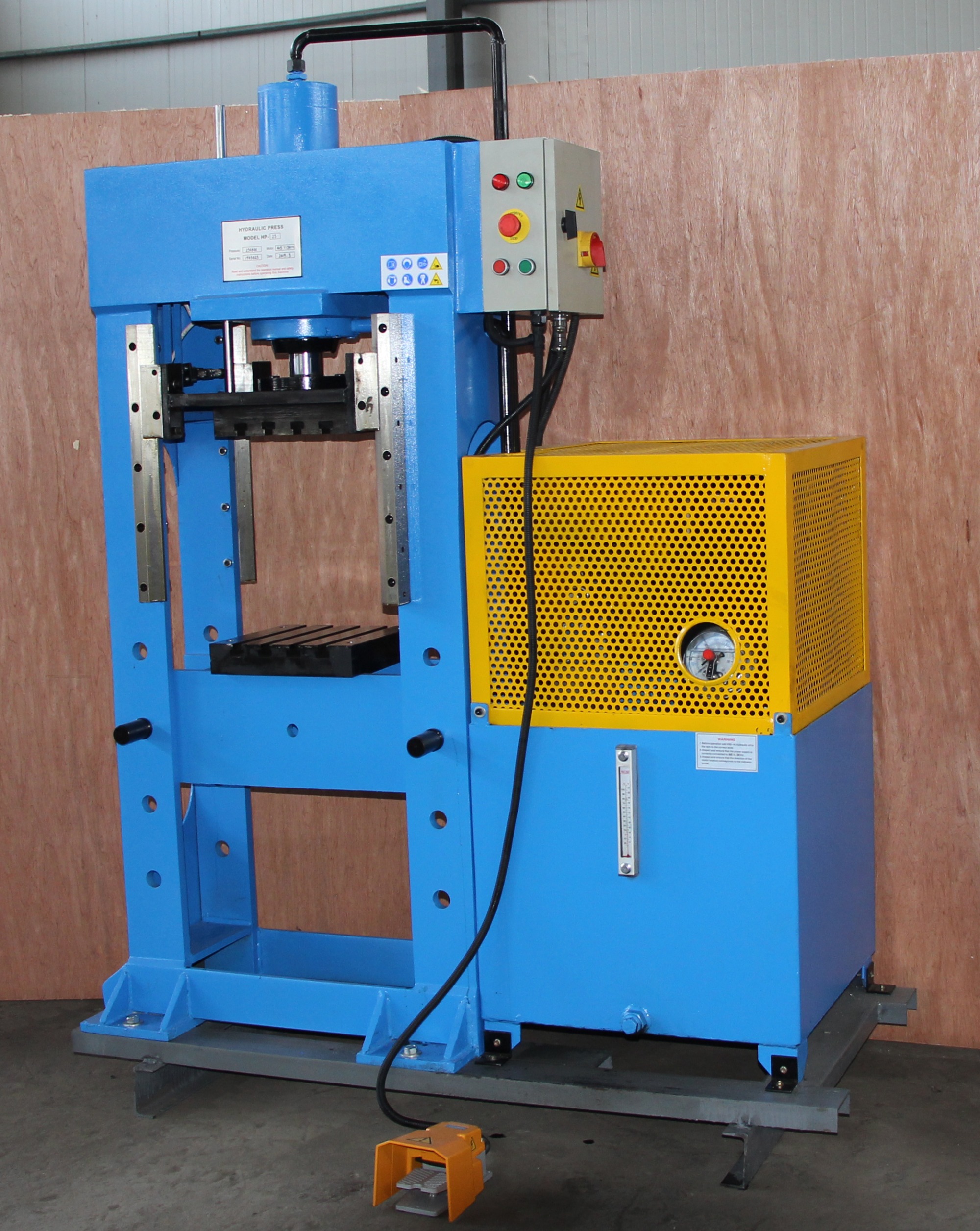

Shop press 10T-250 T

Item No.: 065
Used for assembling ,dismantling,alignment,calendaring, tension,bending and punching
Add to Inquiry
Description
HP series hydraulic press are used for assembling ,dismantling,alignment,calendaring,tension,bending and punching.
The machine is supplied oil by Italy CNK and CBZ pump.
It saves 60% energy compared with the traditional model.
Efficiency increased 2-3 times.
The advantage of small volume,high pressure,simple structure and light weight.

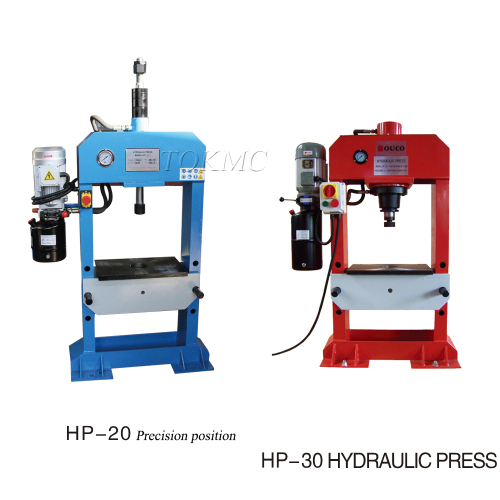

MODEL HP-10 HP-20 HP-30 HP-50 HP-63 HP-80
CAPACITY(KN) 100 200 300 500 630 800
PRESSURE(MPa) 25 25 25 25 30 30
TRAVEL (mm) 200+200 200+250 200+270 220+405 220+405 220+405
TABLE SIZE (mm) 260x300 260x300 300x400 480x360 400x500 400x500
DIMENSION(CM) 100x45*120 116x55x150 116x55x160 150x65x195 150x65x195 150x65x195
WEITHT (KG) 220 320 420 980 1020 1090
